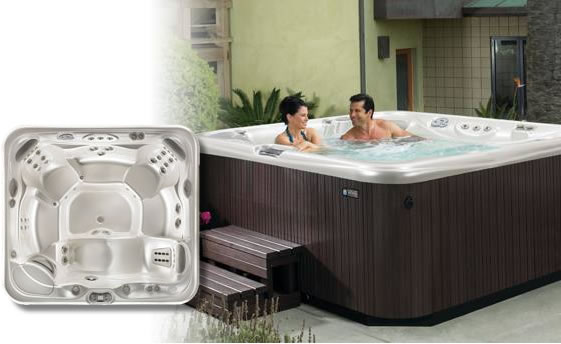

Vista

VistaThe Vista features 47 jets and two 2.5 horsepower jet pumps. Its extremely comfortable lounge accommodates a wide range of heights, while its corner seats deliver a variety of targeted back, wrist and calf hydromassage options. The Vista hot tub includes the Moto-Massage® DX Jet and the BellaFontana® water feature. And our optional SpAudio® music systems let you enjoy your favorite sounds while relaxing in your spa or entertaining in your backyard.







Vista Hot Tubs Specifications
Seating Capacity 6 adults
Dimensions 8' 4" x 7' 7" x 38"H/2.54m x 2.31m x .97m H
Water Capacity 500 gallons/1,893 litres
Weight 1,008 lbs./457 kg dry; 6,059 lbs./2,748 kg filled *
Spa Shell Colors
Graphite •  Pearl •  Sand •  Sterling Marble •  Champagne Opal

graphite   pearl   sand
Spa Cabinet
Corresponding Everwood® Cabinet:
Graphite: Coastal Gray / Champagne Opal, Pearl, Sand: Coastal Gray, Espresso, or Redwood
Sterling Marble: Coastal Gray or Espresso
Coastal Gray   Espresso Cabinet   Redwood Cabinet
Spa Shell (Pearl)
Custom Cabinet/Spa Stone™ Options:
Full Surround (Earth or Gray), Partial Surrond (Earth or Gray), or No Surround
Earth Cabinet   Gray Cabinet
Lighting System
 (Extra Large) Luminescence® multi-color LED lighting system
Entertainment Systems (optional) SpAudio®, SpAudioCast™, or Moonlight™ ready
Hot Tub Jets
Total Jets = 47

(Stainless Steel Escutcheons) 		1 Moto-Massage® DX Jet (2)
2 Soothing Seven® Jets
2 JetStream® Jets
2 Rotary Hydromassage Jets
5 Directional Hydromassage Jets
10 HydroStream® Jets
2 Rotary Precision® Jets
22 Directional Precision® Jets
Water Feature BellaFontana®
Control System IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel
Heater No-Fault®, 4000w/230v
Jet Pumps Jet Pump 1-Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 4.8 HP Breakdown Torque
Jet Pump 2-Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 4.8 HP Breakdown Torque
Circulation Pump SilentFlo 500®
Ozone System FreshWater® III Corona Discharge
Water Care System AutoFresh™ System & EverFresh® System or optional ACE™ Salt Water Sanitizing System
Effective Filtration Area 325 sq. ft., top loading, 100% no-bypass filtration (Tri-X™)
Vinyl Cover 3.5" to 2.5" tapered, 2.0 lb. density foam core
 * Includes water and 6 adults weighing 175 lbs. each. Export models available in 230v, 50Hz, 1500w Heater.
