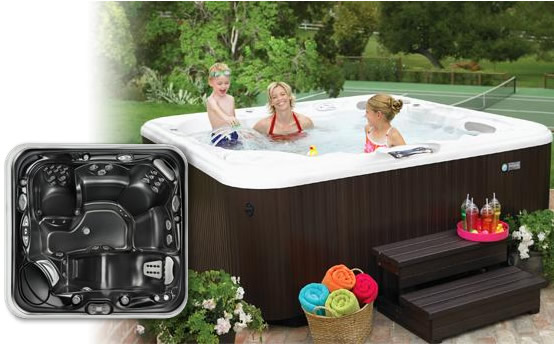

Envoy

EnvoyThe Envoy hot tub delivers outstanding performance with 39 jets, including the Moto-Massage® DX jet, and two 2.0 horsepower jet pumps. A comfortable hot tub lounge and a recliner seat with wrist and calf jets soothe and refresh. The three JetStream® jets in the FootWell® system provide exceptional foot therapy. Advanced Tri-X® filters keep the spa water clear and fresh.









Envoy Hot Tubs Specifications
Seating Capacity 5 adults
Dimensions 7'9" x 7'5" x 36"H/2.36m x 2.26m x .91m H
Water Capacity 450 gallons/1,703 litres
Weight 875 lbs./397 kg dry; 5,350 lbs./2,427 kg filled *
Spa Shell Colors
Graphite •  Pearl •  Sand •  Sterling Marble •  Champagne Opal

graphite   pearl   sand
Spa Cabinet
Corresponding Everwood® Cabinet:
Graphite: Coastal Gray / Champagne Opal, Pearl, Sand: Coastal Gray, Espresso, or Redwood
Sterling Marble: Coastal Gray or Espresso
Coastal Gray   Espresso Cabinet   Redwood Cabinet
Spa Shell (Pearl)
Custom Cabinet/Spa Stone™ Options:
Full Surround (Earth or Gray), Partial Surrond (Earth or Gray), or No Surround
Earth Cabinet   Gray Cabinet
Light
 (Extra Large) Luminescence® multi-color LED lighting system
Music System (optional) SpAudio®, SpAudioCast™, or Moonlight™ ready
Hot Tub Jets
Total Jets = 39

(Stainless Steel
Escutcheons)		 1 Moto-Massage® DX Jet (2)
2 Soothing Seven® Jets
3 JetStream® Jets
2 Rotary Hydromassage Jets
3 Directional Hydromassage Jets
10 HydroStream® Jets
2 Rotary Precision® Jets
15 Directional Precision® Jets
Water Feature BellaFontana®
Control System IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel
Heater No-Fault®, 4000w/230v
Jet Pumps Jet Pump 1-Wavemaster® 8000; One-speed, 2.0 HP Continuous Duty, 3.9 HP Breakdown Torque
Jet Pump 2-Wavemaster® 8200; Two-speed, 2.0 HP Continuous Duty, 3.9 HP Breakdown Torque
Circulation Pump SilentFlo 5000®
Ozone System FreshWater® III Corona Discharge
Water Care System AutoFresh™ System & EverFresh® System
Effective Filtration Area 325 sq. ft., top loading, 100% no-bypass filtration (Tri-X™)
Vinyl Cover 3.5" to 2.5" tapered, 2.0 lb. density foam core
 * Includes water and 5 adults weighing 175 lbs. each. Export models available in 230v, 50Hz, 1500w Heater.
