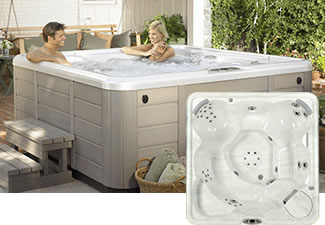

Caspian
Specifications |
|
Seating Capacity |
6 adults |
|
Dimensions |
7' x 7' x 36"(H)/2.13m x 2.13m x .91m (H) |
|
Water Capacity |
330 gallons/1,249 litres |
|
Weight |
789 lbs./358 kg dry; 4,479 lbs./2,032 kg filled * |
Spa Shell
• Ocean Wave
• Sand
• Sterling Marble
|

Ocean Wave |

Sand
|

Sterling Marble |
|
|
| Spa Cabinet |
Corresponding Cabinet: Coastal
Gray (Ocean Wave, Sterling Marble), Redwood (Sand) |
Light
|
(Extra Large) Dimmable blue LED light. Optional interior Luminescence® multi-color lighting system. Optional exterior Clarion® lighting system |
Hot Tub Jets
Total Jets = 36 |
2 Rotary Hydromassage Jets
5 Directional Hydromassage Jets
29 Directional Precision® Jets |
|
Water Feature |
Amur® (backlit with blue LED lighting) |
|
Control System |
IQ 2020® 230v/50 amp. 60 Hz; includes G.F.C.I. protected subpanel |
|
Heater |
No-Fault®, 4000w/230v |
|
Jet Pumps |
Jet Pump 1 - Wavemaster® 8000; One-speed, 2.0 HP Continuous Duty, 3.9 HP Breakdown Torque
Jet Pump 2 - Wavemaster® 8200; Two-speed, 2.0 HP Continuous Duty, 3.9 HP Breakdown Torque |
|
Circulation Pump |
SilentFlo 5000® |
| Electrical Safety |
ETL and C-ETL Listed |
|
Ozone System |
FreshWater® III Corona Discharge |
| Effective Filtration Area |
65 sq. ft., top loading |
| Ozone System Option |
FreshWater® III Corona Discharge |
|
Vinyl Cover |
2.0 lb. density foam core/UL Classified, ASTM rated |
* Includes water and 6 adults
weighing 175 lbs. each
** In 230v mode, G.F.C.I. protected subpanel required. Also available in 230v/50Hz, 15000 w heater. |
