Aria

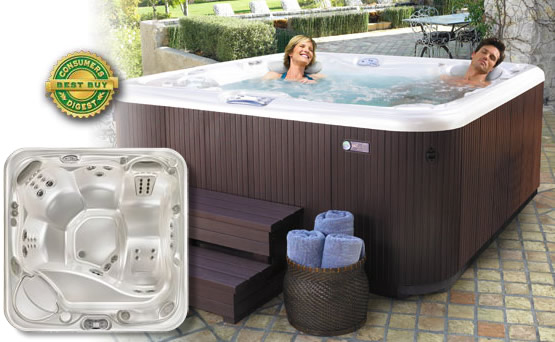

AriaThis Aria hot tub is a Consumers Digest Best Buy! This model includes exclusives like the Moto-Massage® DX jet and the advanced technology of our patented Tri-X® filters, along with special features like Precision® jets in the calf area of the lounge for enhanced hydromassage. The sleek cabinet profile adds a contemporary flair to any backyard. And to complete the Aria spa experience, you can relax to the sound of your favorite song playing on the factory-installed music system.







Aria Hot Tubs Specifications
Seating Capacity 5 adults
Dimensions 7'3" x 7'3" x 36"H/2.20m x 2.20m x .91m H
Water Capacity 365 gallons/1,385 litres
Weight 789 lbs./385 kg dry; 4,841 lbs./2,196 kg filled *
Spa Shell Colors
Graphite •  Pearl •  Sand •  Sterling Marble •  Champagne Opal

graphite   pearl   sand
Spa Cabinet
Corresponding Everwood® Cabinet:
Graphite: Coastal Gray / Champagne Opal, Pearl, Sand: Coastal Gray, Espresso, or Redwood
Sterling Marble: Coastal Gray or Espresso
Coastal Gray   Espresso Cabinet   Redwood Cabinet
Spa Shell (Pearl)
Custom Cabinet/Spa Stone™ Options:
Full Surround (Earth or Gray), Partial Surrond (Earth or Gray), or No Surround
Earth Cabinet   Gray Cabinet
Lighting System
 (Extra Large) Luminescence® multi-color LED lighting system
Entertainment Systems (optional) SpAudio®, SpAudioCast™, or Moonlight™ ready
Hot Tub Jets
Total Jets = 35

(Stainless Steel
Escutcheons)		 1 Moto-Massage® DX Jet (2)
2 Soothing Seven® Jets
2 JetStream® Jets
2 Rotary Hydromassage Jets
5 Directional Hydromassage Jets
4 HydroStream® Jets
18 Directional Precision® Jets
Water Feature BellaFontana®
Control System IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel
Heater No-Fault®, 4000w/230v
Jet Pumps Jet Pump 1-Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 4.8 HP Breakdown Torque
Jet Pump 2-Wavemaster® 8200; Two-speed, 2.0 HP Continuous Duty, 3.9 HP Breakdown Torque
Circulation Pump SilentFlo 5000®
Ozone System FreshWater® III Corona Discharge
Water Care System AutoFresh™ System & EverFresh® System
Effective Filtration Area 325 sq. ft., top loading, 100% no-bypass filtration (Tri-X™)
Vinyl Cover 3.5" to 2.5" tapered, 2.0 lb. density foam core
 * Includes water and 5 adults weighing 175 lbs. each. Export models available in 230v, 50Hz, 1500w Heater.
